C117

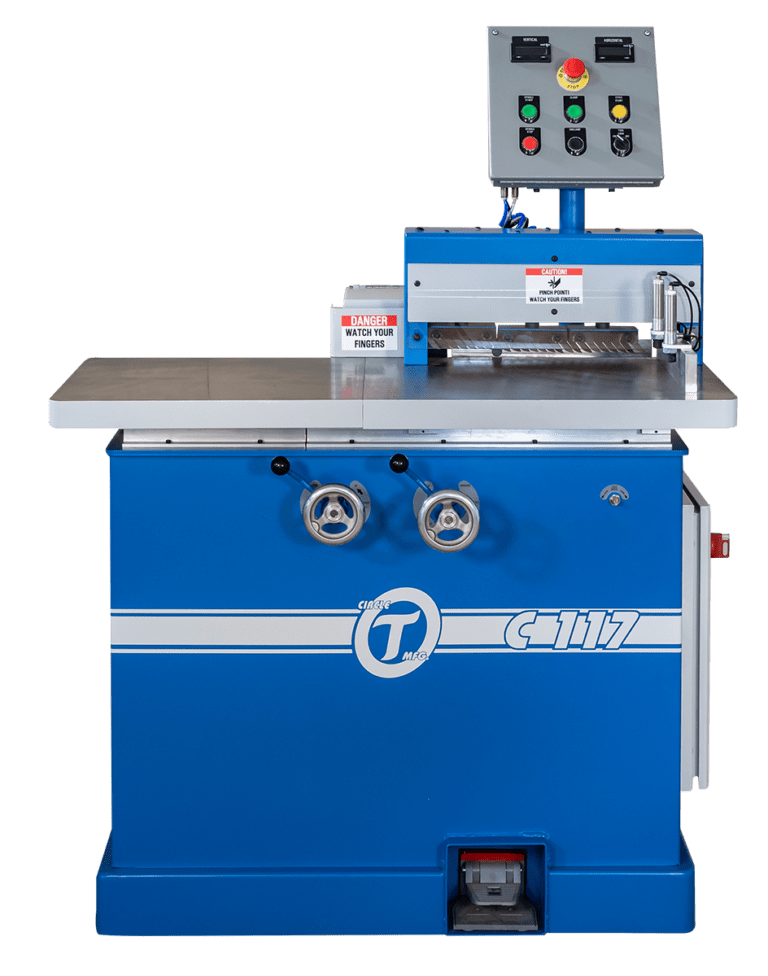

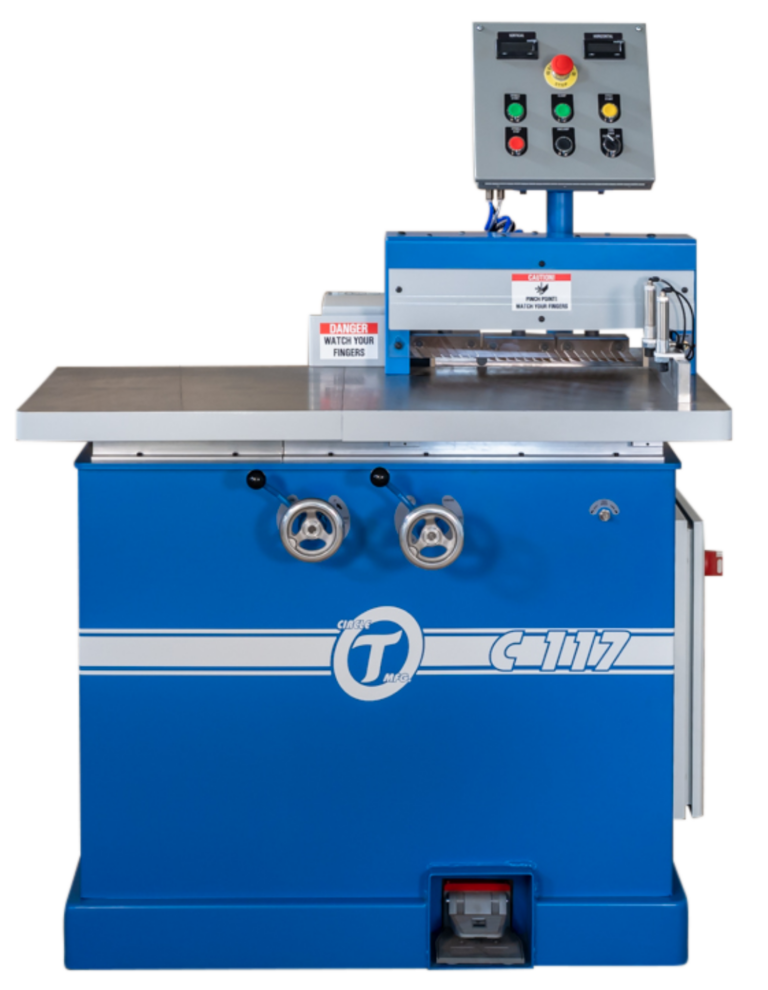

EASY Coping Machine C117 Details

APPLICATION SPECIFICATIONS:

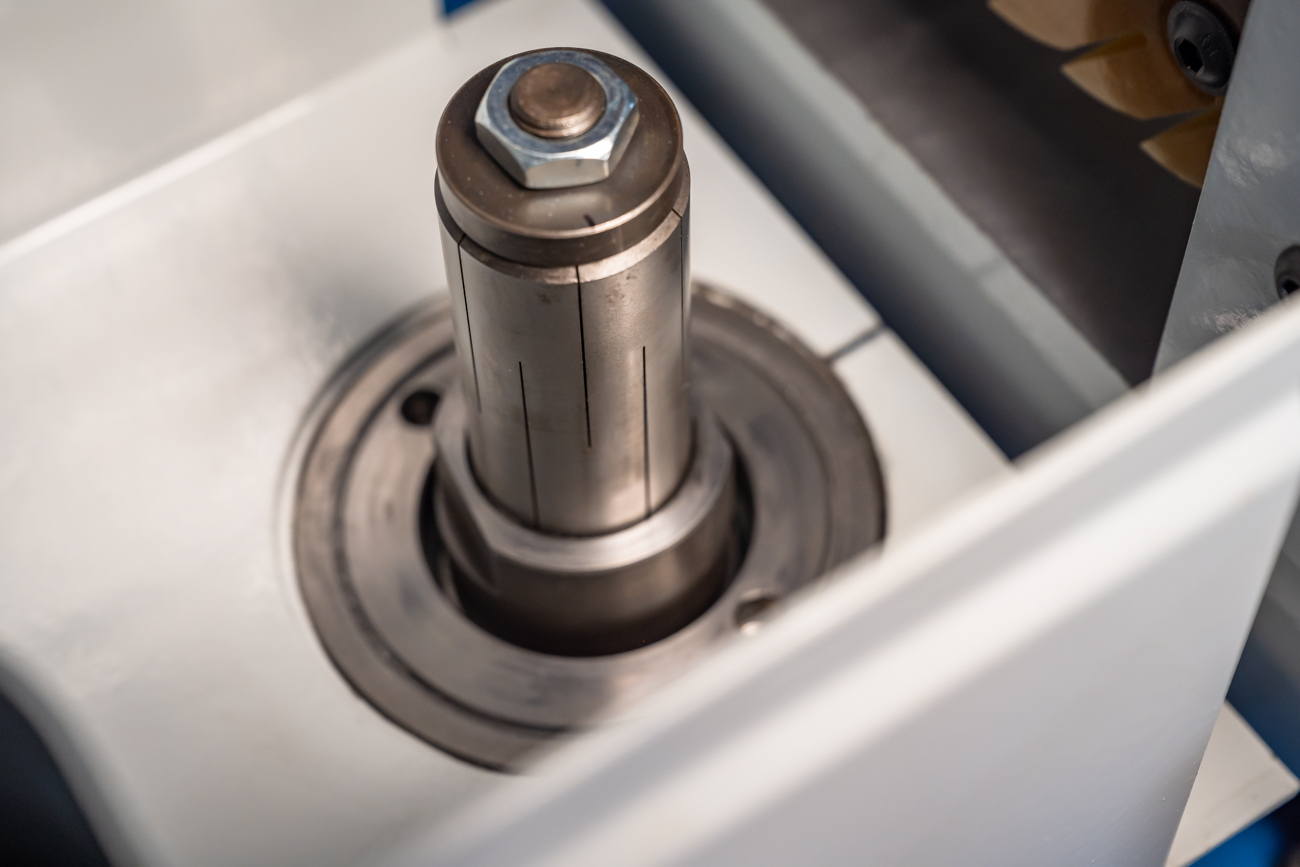

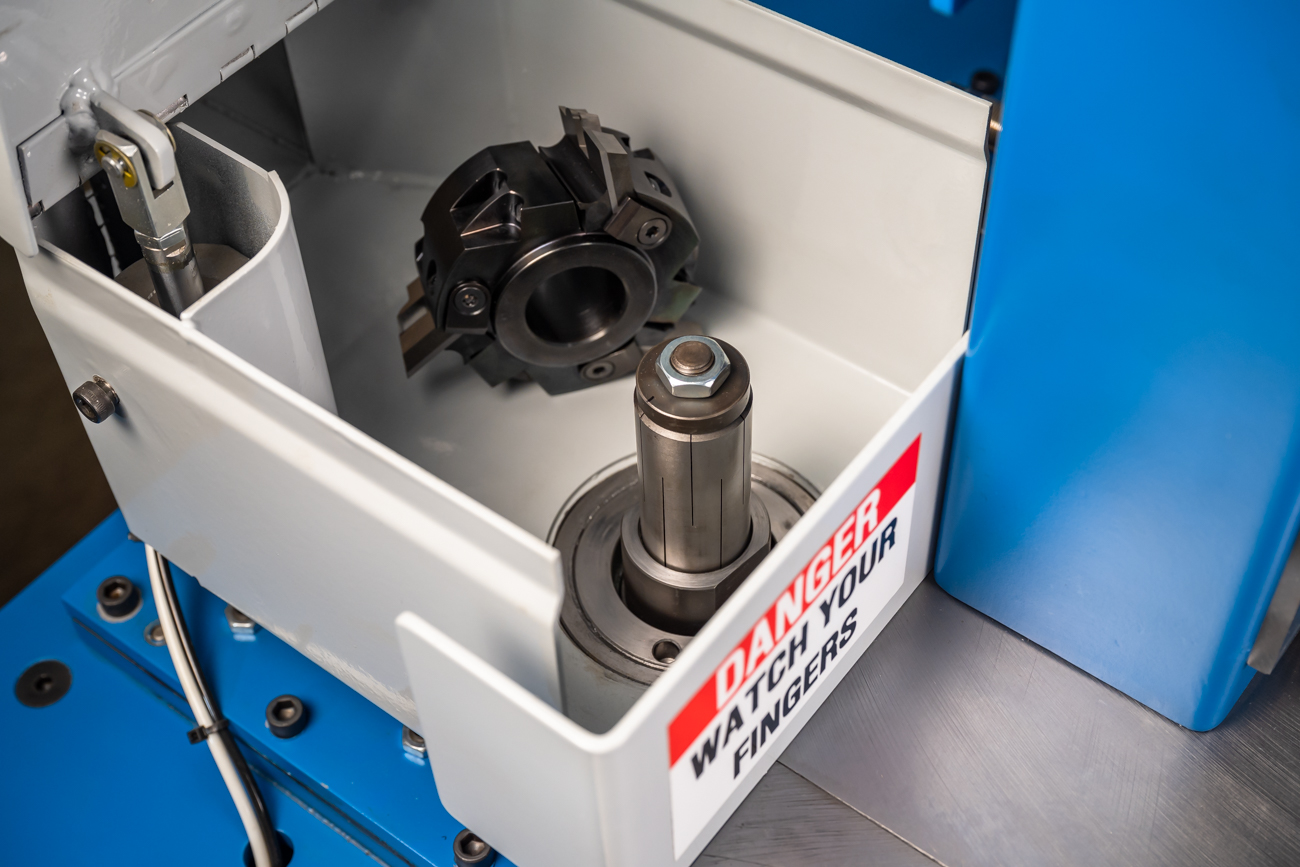

• EASY Quick-Change Spindle INCLUDED
• EASY Foot Pedal Cycle Start
• EASY Backer Block Change
• EASY Pneumatic Hold Down Clamp System
• 16” Wide Cutting Capacity
• 5/8” to 1” Material Thickness

DRIVE PACKAGE SPECIFICATIONS:

• Main Motor: 5 H.P.
• 1.25” Spindle
• 4” Diameter Cutter Compatible
• Available in 220v 3ph, 460v 3ph, and Hydraulic Drive Packages (some electric needed for readouts)
• Flat Belt Drive
• Y and Z Axis Spindle Adjustment with DRO

UTILITY REQUIREMENTS

• Dust Collection Requirements: 670 CFM, 4″ Outlet
• Pneumatic Requirements: 90-100 PSI to Power Table and Clamp
• 25 Amp FLA @ 460v 3ph
• 40 Amp FLA @ 230v 3ph

DIMENSION SPECIFICATIONS:

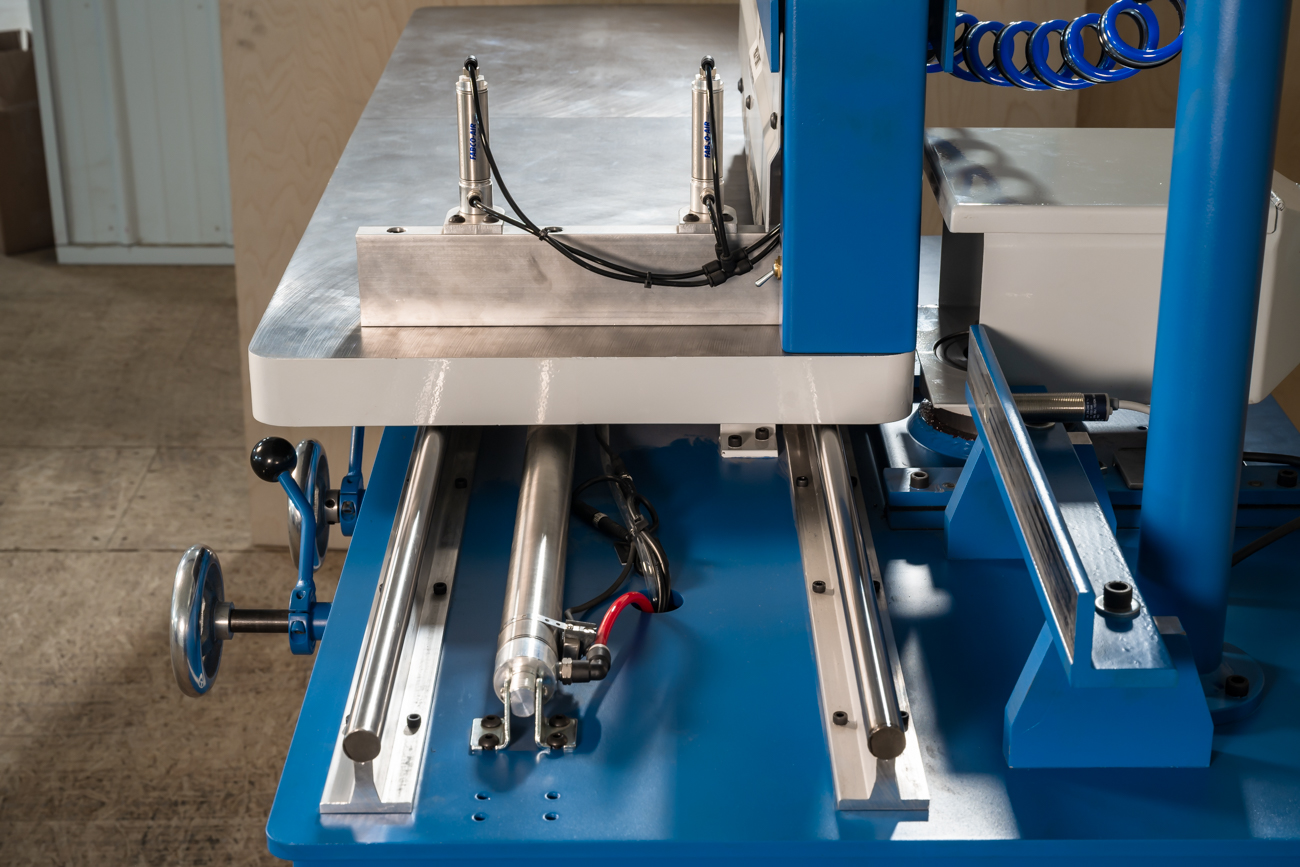

• Table Size: 44” L x 17” W
• Table Height: 36”
• Footprint: 46” L x 29” W x 60” H (Additional 20” needed on left side for table movement)
• Working Area Footprint: 63” L x 28” W x 60” H

SHIPPING WEIGHT: 1100lbs

SHIPPING DIMENSIONS: 41”L x 48”W x 67”H
