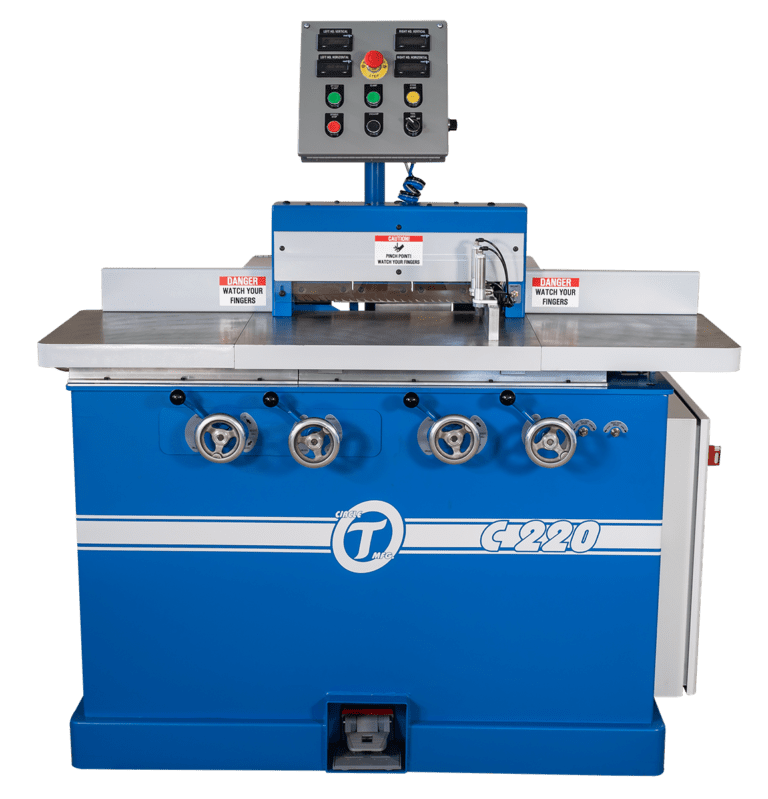

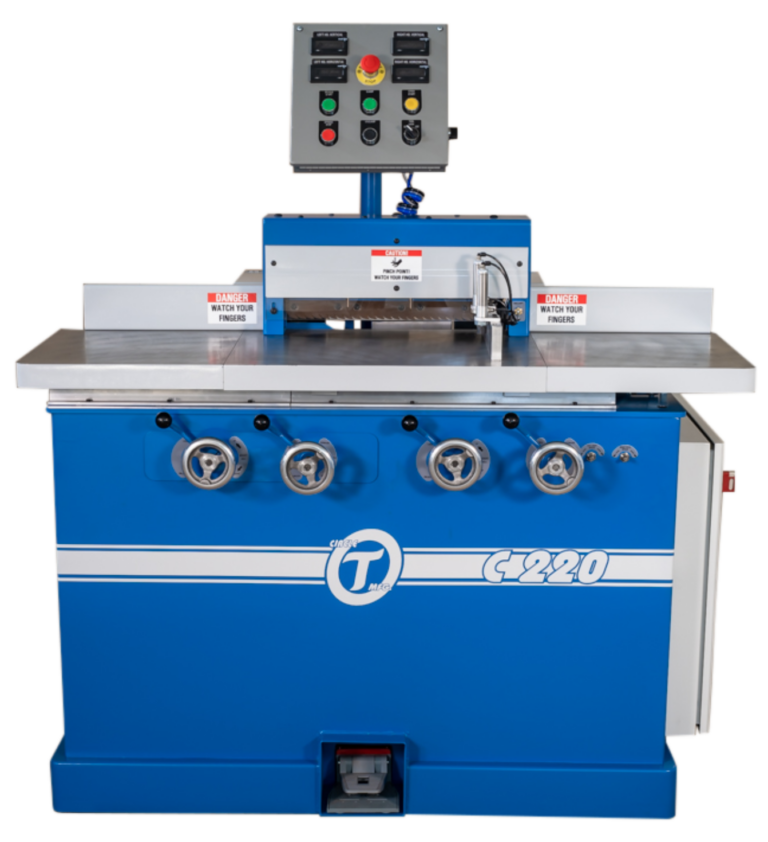

EASY Coping Machine C220 Specifications



APPLICATION SPECIFICATIONS:

  • EASY Quick-Change Spindles INCLUDED
  • EASY Foot Pedal Cycle Start
  • EASY Pneumatic Hold Down Clamp System
  • 16” Wide Cutting Capacity
  • 5/8” to 1” Material Thickness

DRIVE PACKAGE SPECIFICATIONS:

  • Main Motors: 2 – 5 H.P.

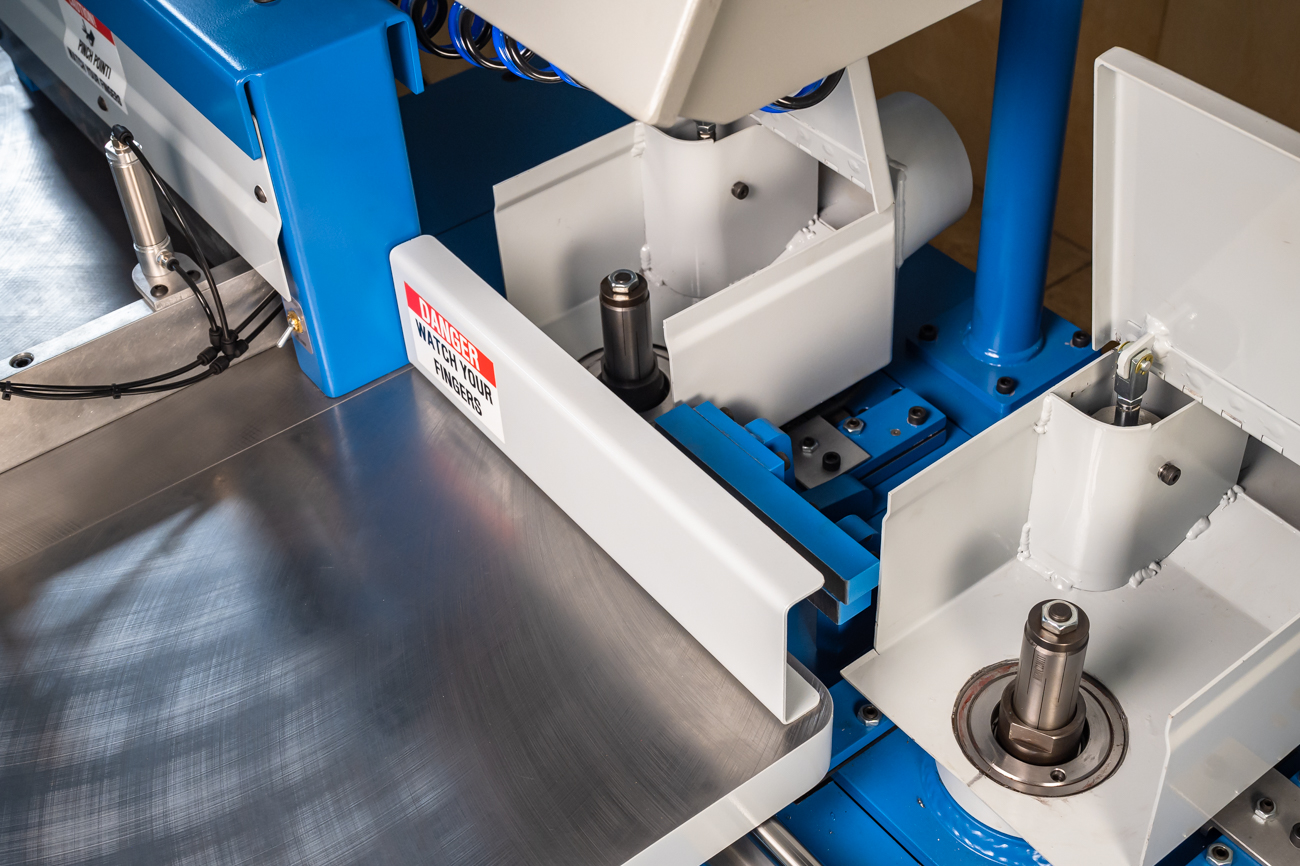

  • 1.25” Spindles
  • 3” and 4” (ID) Cutter Compatible
  • Available in 220v 3ph, 460v 3ph, and Hydraulic Drive Packages (some electric needed for readouts)
  • Flat Belt Drive

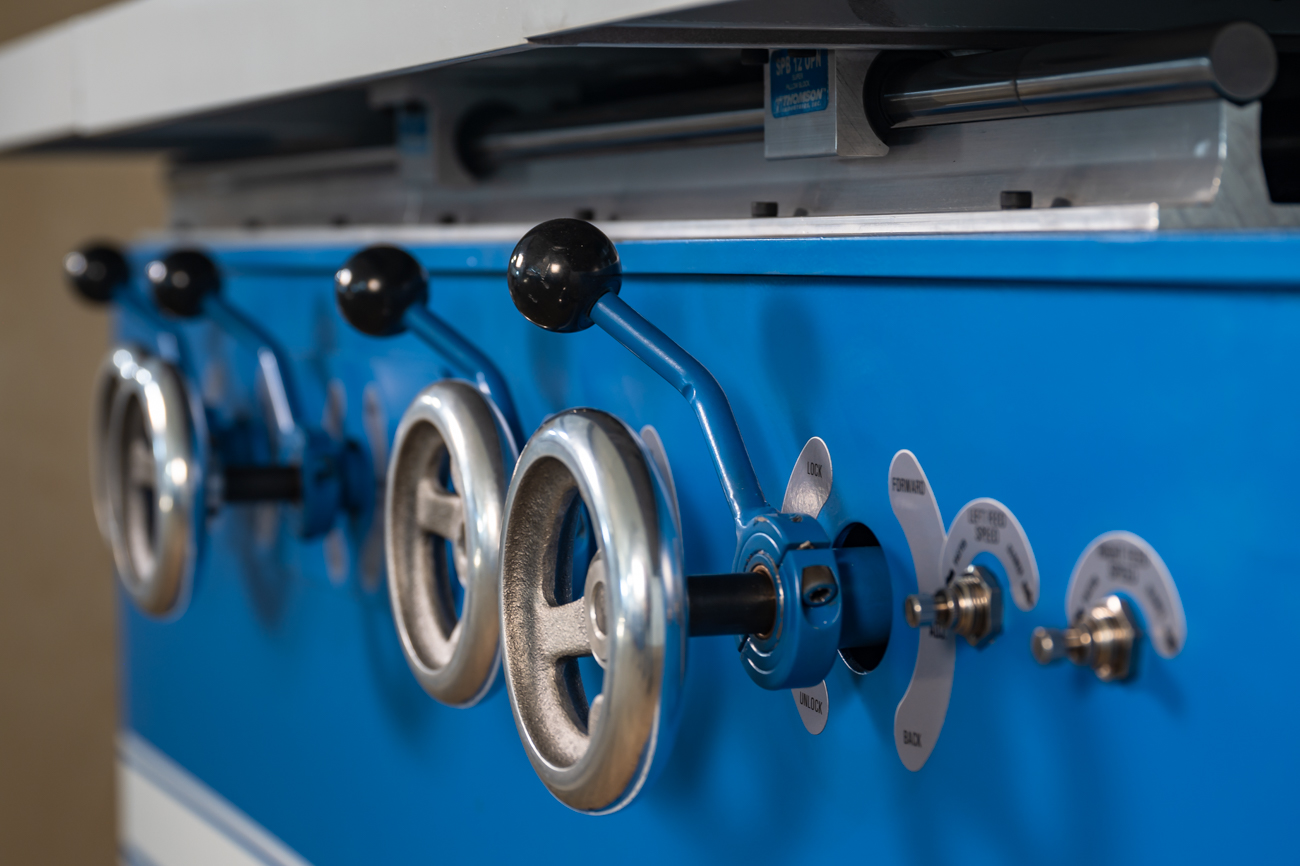

  • Y and Z Axis Spindle Adjustments with DRO

UTILITY REQUIREMENTS

  • Dust Collection Requirements: 2 – 4″ Outlets, 670 CFM (each)
  • Pneumatic Requirements: .3 CFM @ 100 PSI to Power Table and Clamp
  • 4 Amp FLA @ 460v 3ph (Motor FLA, not disconnect size)
  • 8 Amp FLA @ 230v 3ph (Motor FLA, not disconnect size)

DIMENSION SPECIFICATIONS:

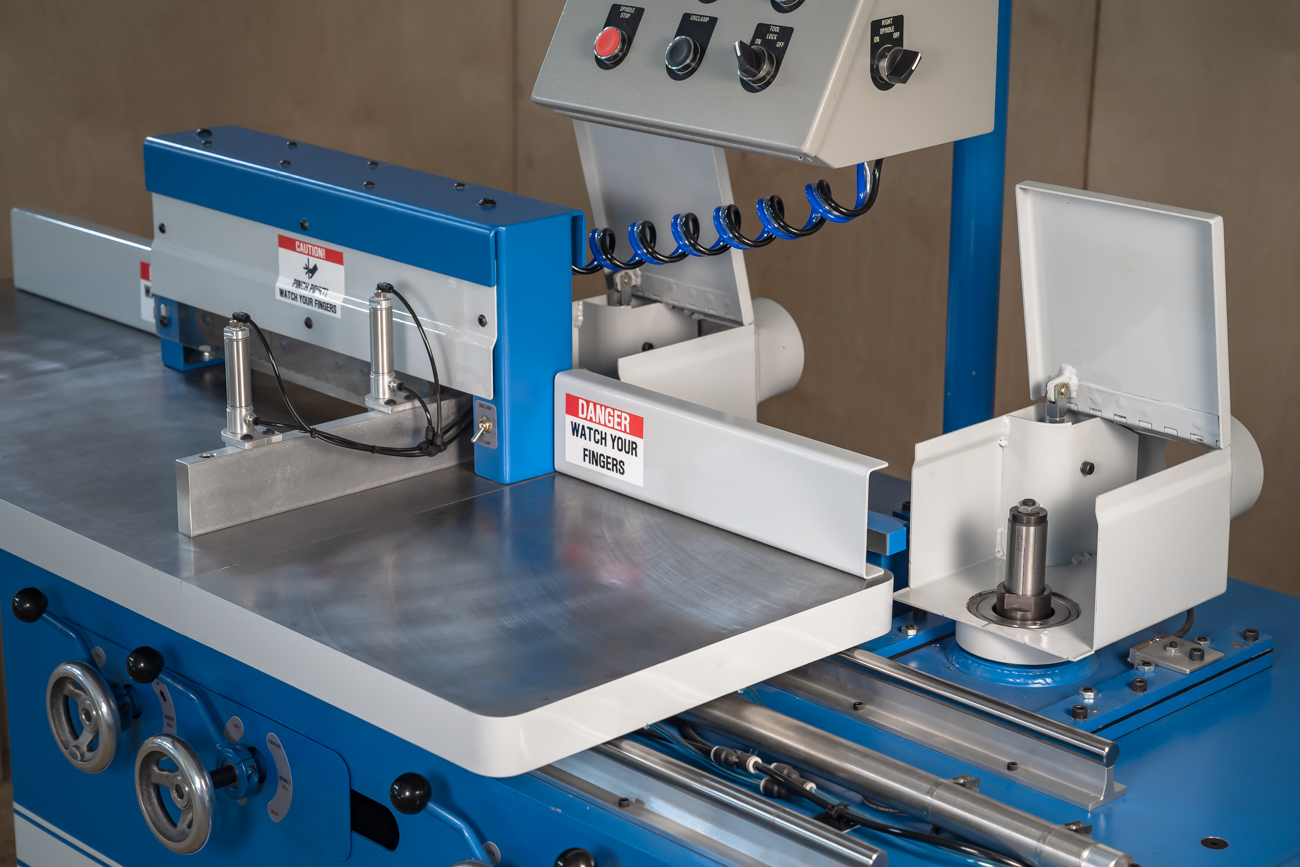

  • Table Size: 53” L x 16” W
  • Table Height: 36”
  • Footprint: 53” L x 34” D x 60” H (Additional 17” needed on left side for table movement)
  • Working Area Footprint: 70” L x 34” W x 60” H

SHIPPING WEIGHT: 1900lbs

SHIPPING DIMENSIONS: 61”L x 42”W x 69”H
